spd_learn.modules.SPDBatchNormMeanVar

class spd_learn.modules.SPDBatchNormMeanVar(num_features, momentum=0.1, affine=True, n_iter=1, bias_requires_grad=True, weight_requires_grad=True, eps=None, device=None, dtype=None)

Bases: Module

SPD Batch Normalization (Mean and Variance).

This class implements the SPD Batch Normalization (SPDBN) layer for the Symmetric Positive Definite (SPD) manifold [Kobler et al., 2022].

The normalization performs Riemannian centering via parallel transport under the affine-invariant Riemannian metric. Given a batch of SPD matrices \(\{P_i\}_{i=1}^N\) with batch Fréchet mean \(\mathcal{G}\), samples are centered through:

\[\tilde{P}_i = \Gamma_{\mathcal{G} \to I}(P_i) = \mathcal{G}^{-\frac{1}{2}} P_i \mathcal{G}^{-\frac{1}{2}}\]

where \(\Gamma_{\mathcal{G} \to I}\) represents parallel transport from \(\mathcal{G}\) to the identity matrix \(I\). This is followed by dispersion normalization and an optional learnable re-biasing via a congruence transformation with learnable SPD matrix \(G\):

\[\hat{P}_i = \Gamma_{I \to G}(\tilde{P}_i) = G^{\frac{1}{2}} \tilde{P}_i G^{\frac{1}{2}}\]

This acts as a manifold-consistent analogue of Euclidean batch normalization, absorbing global covariance shifts and improving conditioning for subsequent tangent-space operations. The momentum-based estimator updates the running mean in a single pass, reducing the need for repeated Karcher iterations. Implementation follows Kobler et al.’s SPDMBN/SPDBN: Fréchet mean/variance on SPD and dispersion normalization with momentum running statistics.

Parameters:

• num_features (int) – The size of the SPD matrices (number of features).

• momentum (float, default=0.1) – Momentum factor for updating the running mean.

• affine (bool, default=True) – If True, this module has learnable affine parameters.

• n_iter (int, default=1) – Number of Karcher flow iterations to estimate the batch mean.

• bias_requires_grad (bool, default=True) – If True, the bias parameter requires a gradient.

• weight_requires_grad (bool, default=True) – If True, the weight parameter requires a gradient.

• eps (float, optional) – A value added to the denominator for numerical stability. If None, uses the value from the unified numerical configuration. Default: None.

See also

SPDBatchNormMean

Mean-only Riemannian batch normalization from Brooks et al.

BiMap

Bilinear mapping layer often used before batch normalization.

ReEig

Eigenvalue rectification for numerical stability.

LogEig

Projects normalized SPD matrices to tangent space.

log_euclidean_mean()

Computes the Log-Euclidean mean of SPD matrices.

parallel_transport_airm()

Parallel transport under AIRM.

Examples

>>> import torch
>>> from spd_learn.modules import SPDBatchNormMeanVar
>>> bn = SPDBatchNormMeanVar(num_features=4, momentum=0.1)
>>> X = torch.randn(8, 4, 4)
>>> X = X @ X.mT + 0.1 * torch.eye(4)  # Make SPD
>>> Y = bn(X)
>>> Y.shape
torch.Size([8, 4, 4])

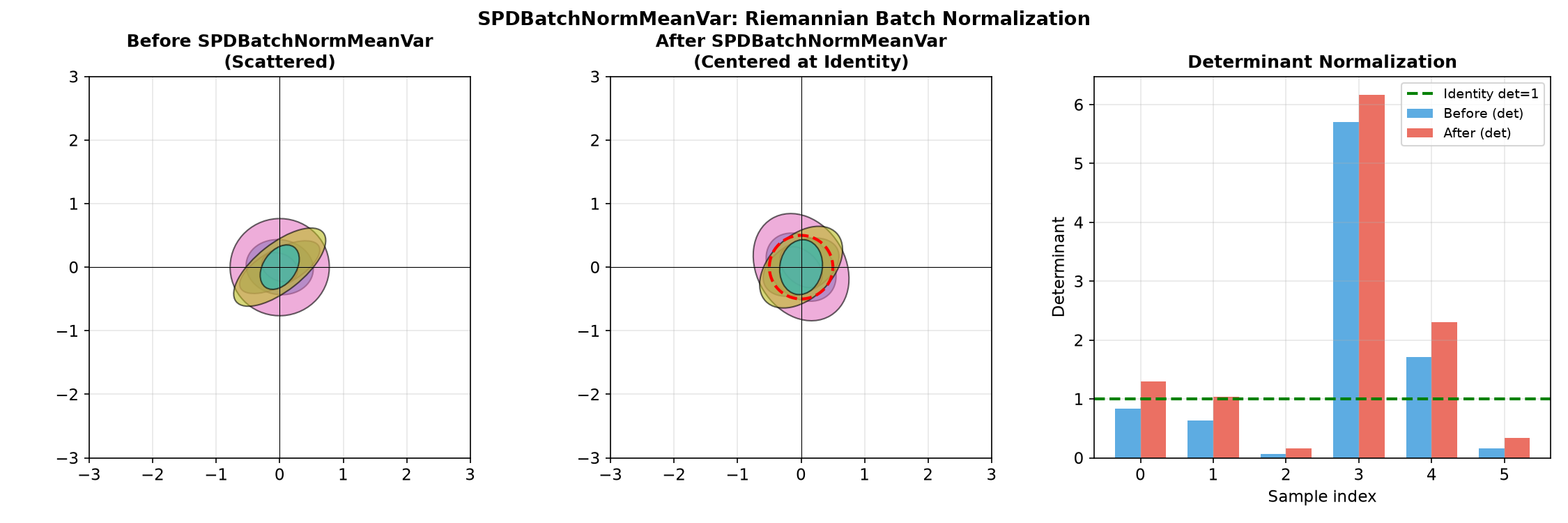

import torch
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Ellipse
from spd_learn.modules import SPDBatchNormMeanVar

def spd_to_ellipse(spd_matrix, center=(0, 0), scale=1.0):
    eigvals, eigvecs = np.linalg.eigh(spd_matrix)
    width = 2 * np.sqrt(eigvals[1]) * scale
    height = 2 * np.sqrt(eigvals[0]) * scale
    angle = np.degrees(np.arctan2(eigvecs[1, 1], eigvecs[0, 1]))
    return Ellipse(center, width, height, angle=angle)

# Create batch of 2x2 SPD matrices with different means
torch.manual_seed(42)
np.random.seed(42)
batch_size = 6

# Generate scattered SPD matrices
spd_batch = []
for i in range(batch_size):
    scale = np.random.uniform(0.5, 2.0)
    angle = np.random.uniform(0, np.pi)
    R = np.array([[np.cos(angle), -np.sin(angle)],
                  [np.sin(angle), np.cos(angle)]])
    D = np.diag([scale, scale * np.random.uniform(0.3, 1.0)])
    S = R @ D @ D @ R.T
    spd_batch.append(S)

X = torch.tensor(np.array(spd_batch), dtype=torch.float32)

# Apply SPDBatchNormMeanVar
bn = SPDBatchNormMeanVar(num_features=2, momentum=0.1, affine=False)
bn.train()
Y = bn(X)

fig, axes = plt.subplots(1, 3, figsize=(15, 5))

# Before normalization
ax1 = axes[0]
colors = plt.cm.tab10(np.linspace(0, 1, batch_size))
for i, S in enumerate(X.numpy()):
    ellipse = spd_to_ellipse(S, scale=0.5)
    ellipse.set_facecolor(colors[i])
    ellipse.set_alpha(0.6)
    ellipse.set_edgecolor('black')
    ax1.add_patch(ellipse)
ax1.set_xlim(-3, 3)
ax1.set_ylim(-3, 3)
ax1.set_aspect('equal')
ax1.grid(True, alpha=0.3)
ax1.axhline(y=0, color='k', linewidth=0.5)
ax1.axvline(x=0, color='k', linewidth=0.5)
ax1.set_title('Before SPDBatchNormMeanVar\n(Scattered)', fontweight='bold')

# After normalization
ax2 = axes[1]
for i, S in enumerate(Y.detach().numpy()):
    ellipse = spd_to_ellipse(S, scale=0.5)
    ellipse.set_facecolor(colors[i])
    ellipse.set_alpha(0.6)
    ellipse.set_edgecolor('black')
    ax2.add_patch(ellipse)
# Draw identity reference
identity = Ellipse((0, 0), 1, 1, facecolor='none',
                   edgecolor='red', linewidth=2, linestyle='--')
ax2.add_patch(identity)
ax2.set_xlim(-3, 3)
ax2.set_ylim(-3, 3)
ax2.set_aspect('equal')
ax2.grid(True, alpha=0.3)
ax2.axhline(y=0, color='k', linewidth=0.5)
ax2.axvline(x=0, color='k', linewidth=0.5)
ax2.set_title('After SPDBatchNormMeanVar\n(Centered at Identity)', fontweight='bold')

# Eigenvalue comparison
ax3 = axes[2]
eigvals_before = [np.linalg.eigvalsh(s) for s in X.numpy()]
eigvals_after = [np.linalg.eigvalsh(s) for s in Y.detach().numpy()]

x_pos = np.arange(batch_size)
width = 0.35
ax3.bar(x_pos - width/2,
        [np.prod(e) for e in eigvals_before],
        width, label='Before (det)', color='#3498db', alpha=0.8)
ax3.bar(x_pos + width/2,
        [np.prod(e) for e in eigvals_after],
        width, label='After (det)', color='#e74c3c', alpha=0.8)
ax3.axhline(y=1.0, color='green', linestyle='--', linewidth=2, label='Identity det=1')
ax3.set_xlabel('Sample index')
ax3.set_ylabel('Determinant')
ax3.set_title('Determinant Normalization', fontweight='bold')
ax3.legend(fontsize=9)
ax3.grid(True, alpha=0.3)

plt.suptitle('SPDBatchNormMeanVar: Riemannian Batch Normalization', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()

(Source code)

forward(input)

Forward pass of the SPD Batch Normalization layer.

Parameters:

input (torch.Tensor) – Input tensor of shape (batch_size, h, n, n), where each slice along the batch dimension is an SPD matrix.

Returns:

Normalized tensor of the same shape as the input.

Return type:

torch.Tensor

parametrize()

reset_parameters() → None

reset_running_stats() → None
